20 Gallon RV Fresh Water Tank with Plumbing Kit & 12V Water Pump - Portable Water Storage Solution for Camping, Boating & Off-Grid Living | T-2000-BPK-PUMP
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:8 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:71174935
Product Description

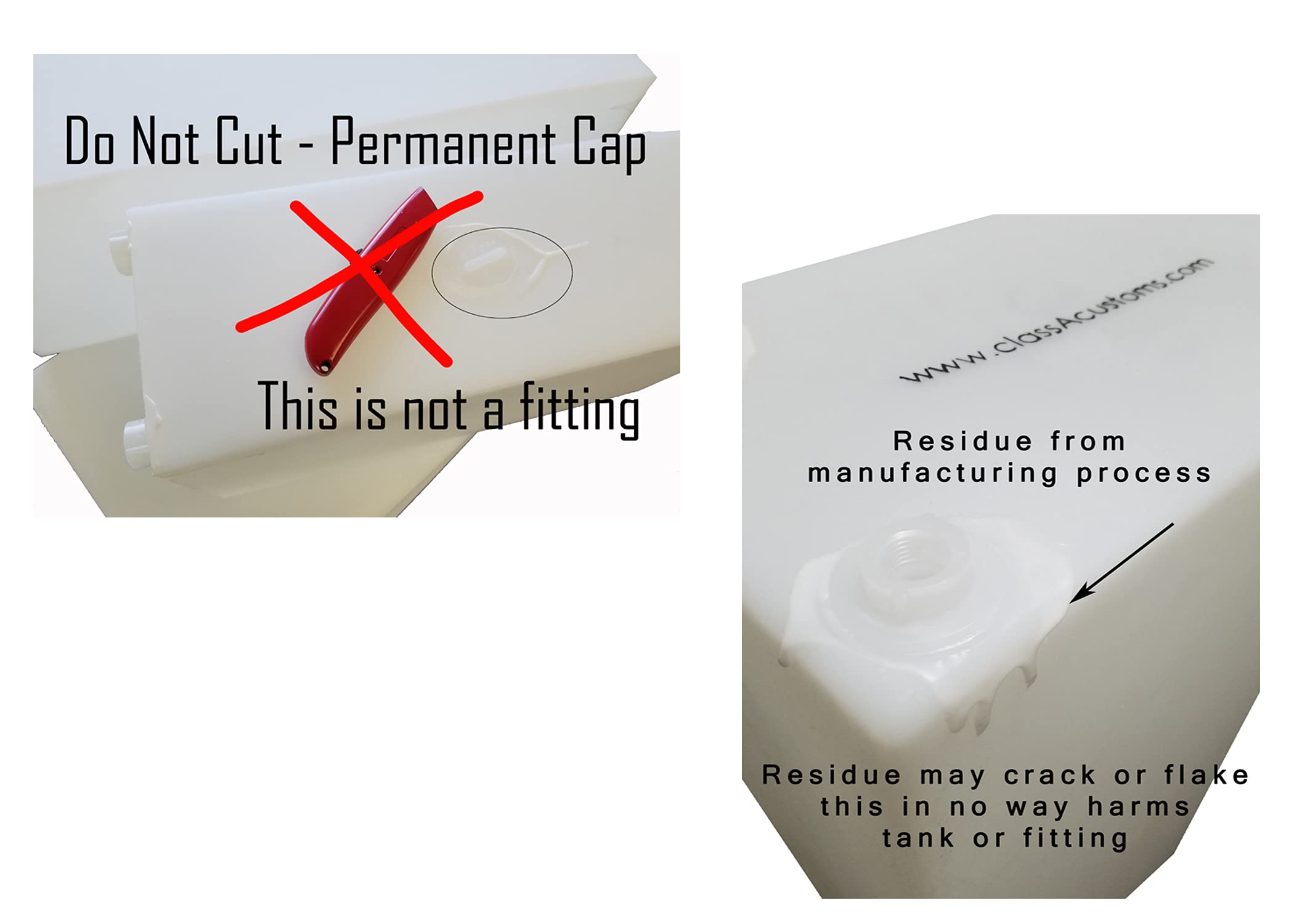

FRESH/DRINKING WATER SAFE – MADE IN THE USA by Class A Customs using NSF Certified Materials Tank & fittings made from DOW NSF International NSF/ANSI Std 61 approved Medium Density Polyethylene (MDPE) Resin SEAMLESS One-piece construction, no seams to burst COLOR Creamy White you can see waterline through tank. OEM PART No retail box - no install instructions Have a certified technician install all parts to prevent product damage and personal injury PREPARATION Tanks are made in a warehouse clean each tank prior to use to remove any debris, scuffs or marking from the manufacturing process. TANK MUST BE VENTED allowing air in and out when in use. *DO NOT PRESSURIZE TANK* do not make a sealed connection from garden hose directly to tank damage will occur. DO NOT over-tighten fittings damage will occur. MOUNTING & BRACING Place tank on level surface and brace to prevent tank from moving during transit. DO NOT hang tank by straps. DO NOT place weight on tank. FOOD VENDORS - BEFORE PURCHASING - Verify all requirements with health department where inspection will be made.
Product Features

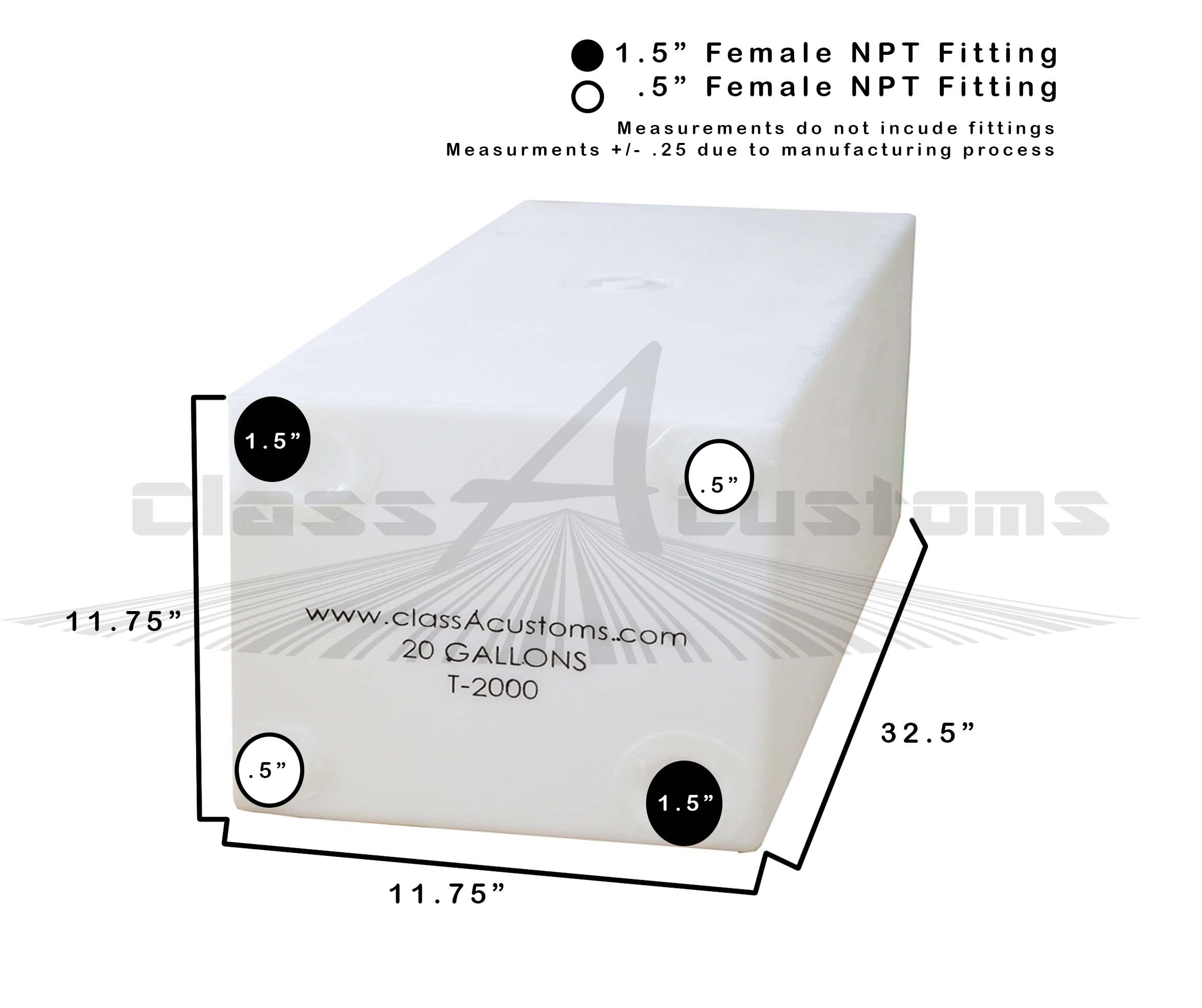

20 Gallon Fresh Water Holding Tank Manufactured by Class A Customs - Made from NSF Approved Materials - Fresh & Drinking Water Safe WATER TANK MEASUREMENTS 32.5” Longest Length (not including fittings) x 11.75” x 11.75” - Tank can sit on any side - rotate tank to change height or width Average Thickness 7/32” +/- Please view photos. (Due to the manufacturing process +/- .25" on each measurement)

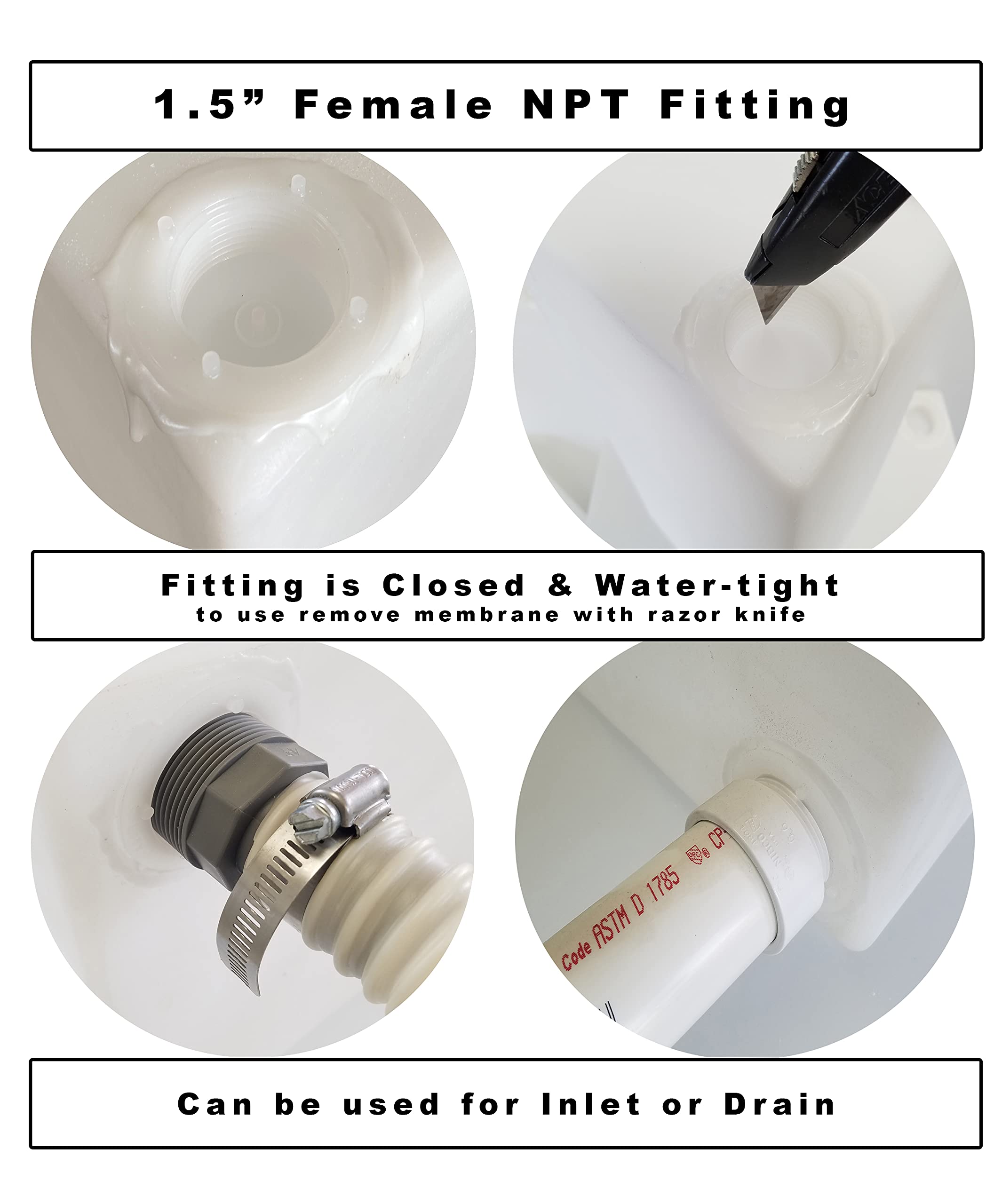

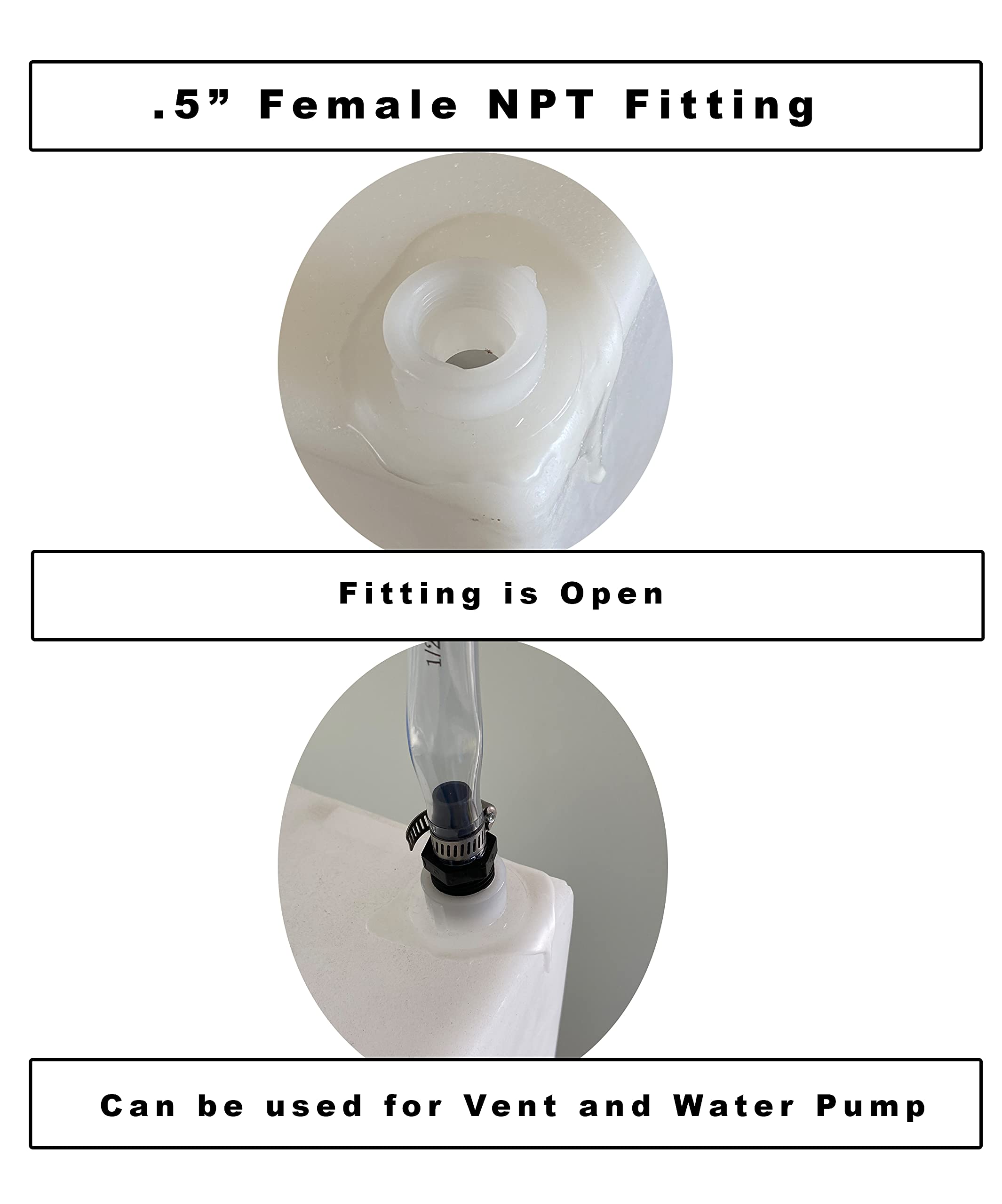

TANK BUILT-IN FITTINGS (TWO) 1.5" Female NPT Fitting - fitting is sealed and watertight, to use remove membrane with razor knife (TWO) .5" Female NPT Fitting - fitting is open DO NOT over-tighten fitting damage will occur, use plastic connecting fittings as metal will damage threads.

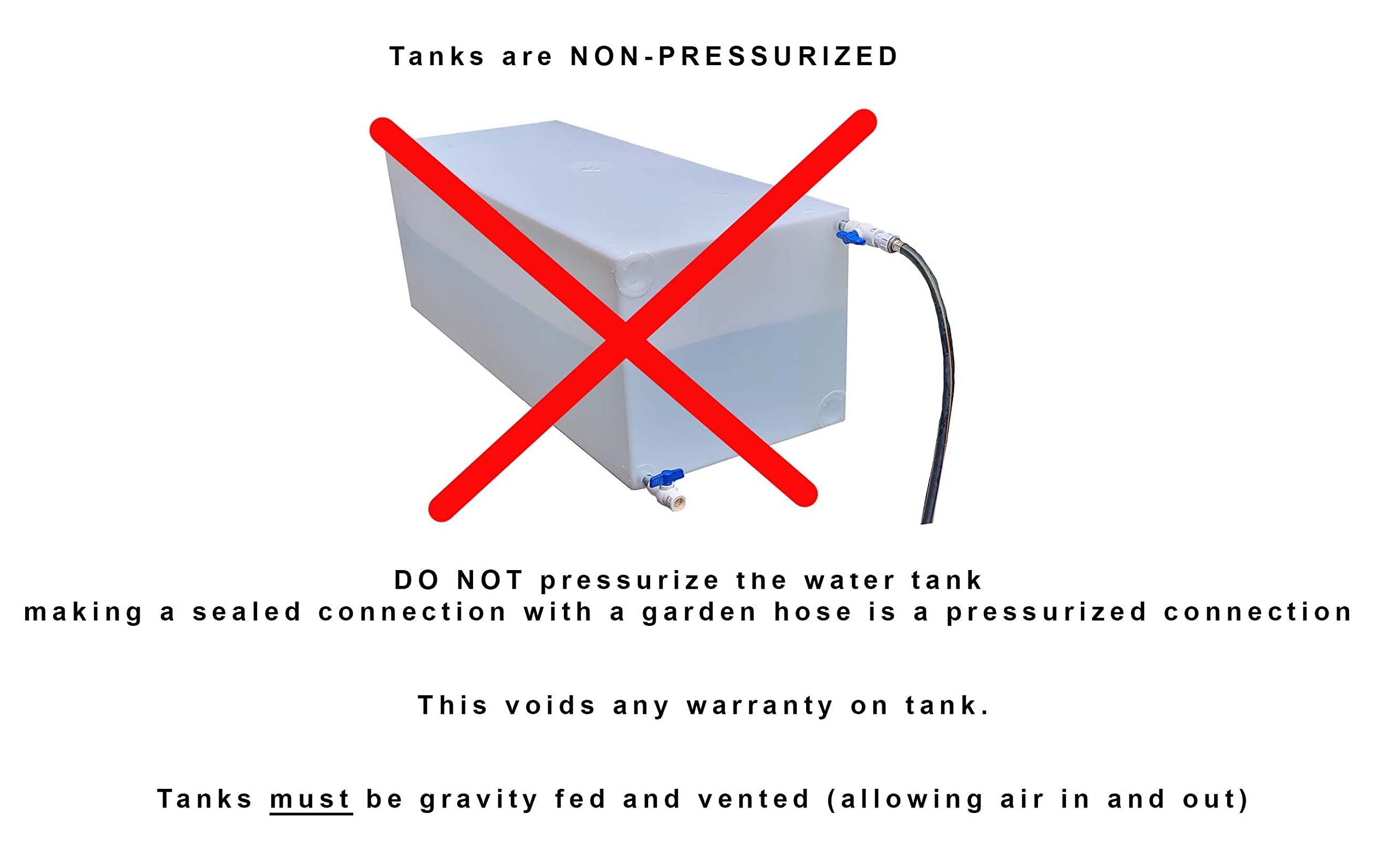

NON-PRESSURIZED TANK tank must be vented allowing air in and out during use. DO NOT make a sealed connection with a garden hose directly to tank, this is a pressurized connection and will cause tank to explode causing damage. For filling tank it is recommended to use a fill dish or other gravity process.

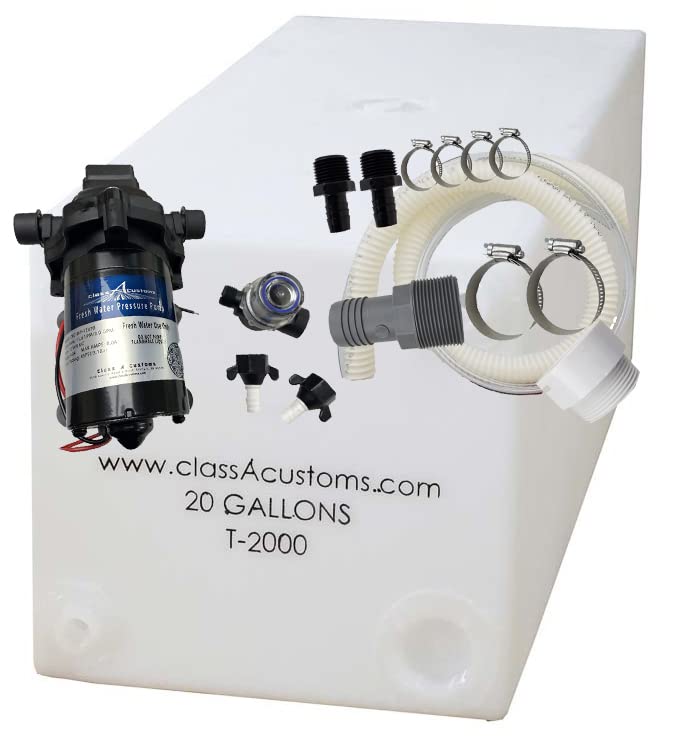

BASIC PLUMBING KIT INCLUDES - (TWO) 0.5” Hose Barb to 0.5” Male Pipe Thread Adaptor (FOUR) 0.5” Hose Clamp (ONE) 1.25” Hose Barb to 1.5” Male Pipe Thread Adaptor (TWO) 1.5” Hose Clamps (ONE) 1.5” Male Pipe Thread PVC Male Adaptor (ONE) 5ft. Section of 0.5” ID Vent/Draw Hose (ONE) 5ft. Section of 1.25” ID (1.375” OD) Fill Hose

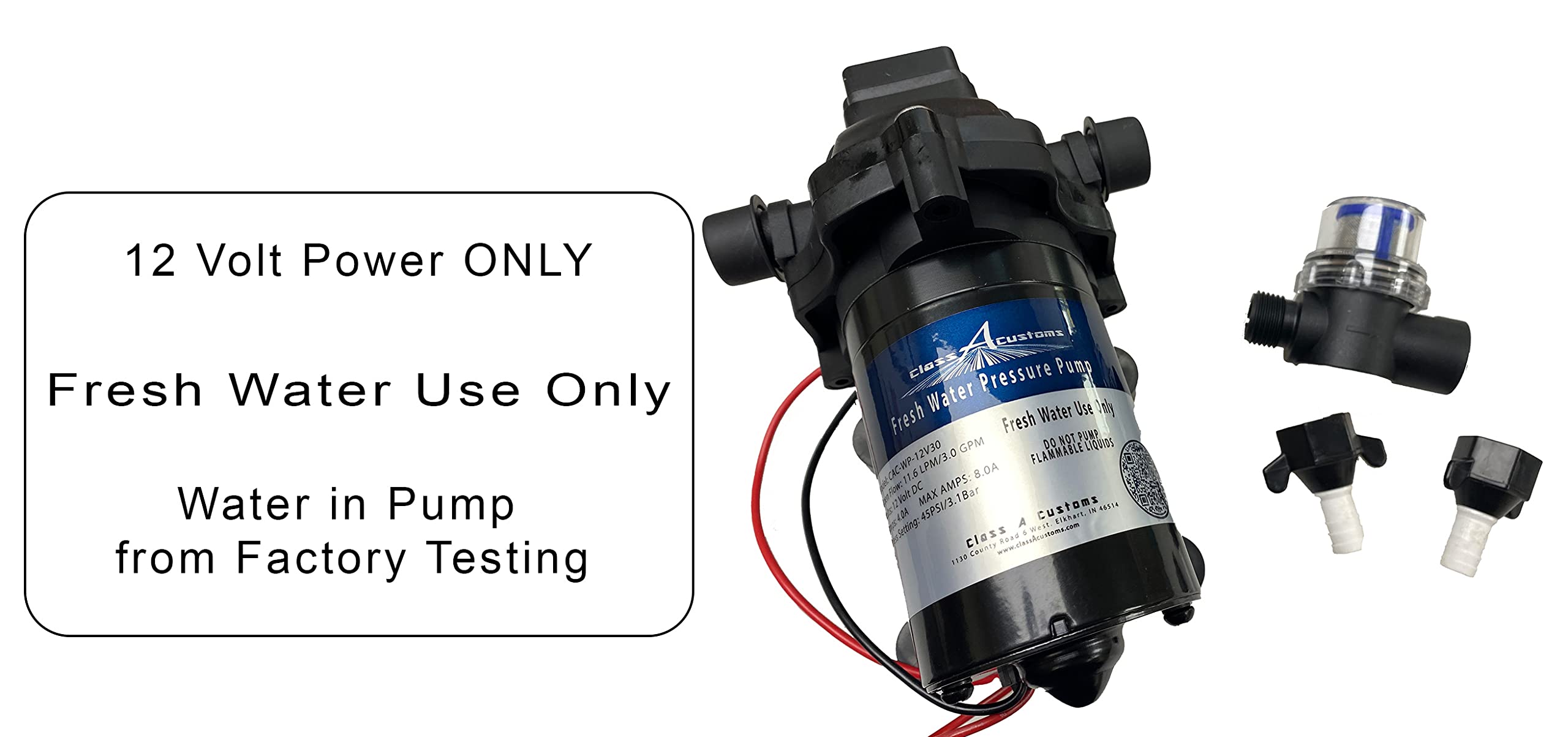

classAcustoms 12 VOLT Fresh Water Pump MODEL # 12V3 - FRESH WATER USE ONLY - OPEN FLOW 11.6LPM / 3.0GPM AMPS 4.0A MAX AMPS 8.0A SHUT OFF PRESSURE 45PSI/3.1 Bar ON-DEMAND PUMP only turns on when senses pressure changes in line 12 VOLT POWER ONLY 110/115/220 volt will damage the unit - READ INSTRUCTION BOOKLER BEFORE INSTALLATION
